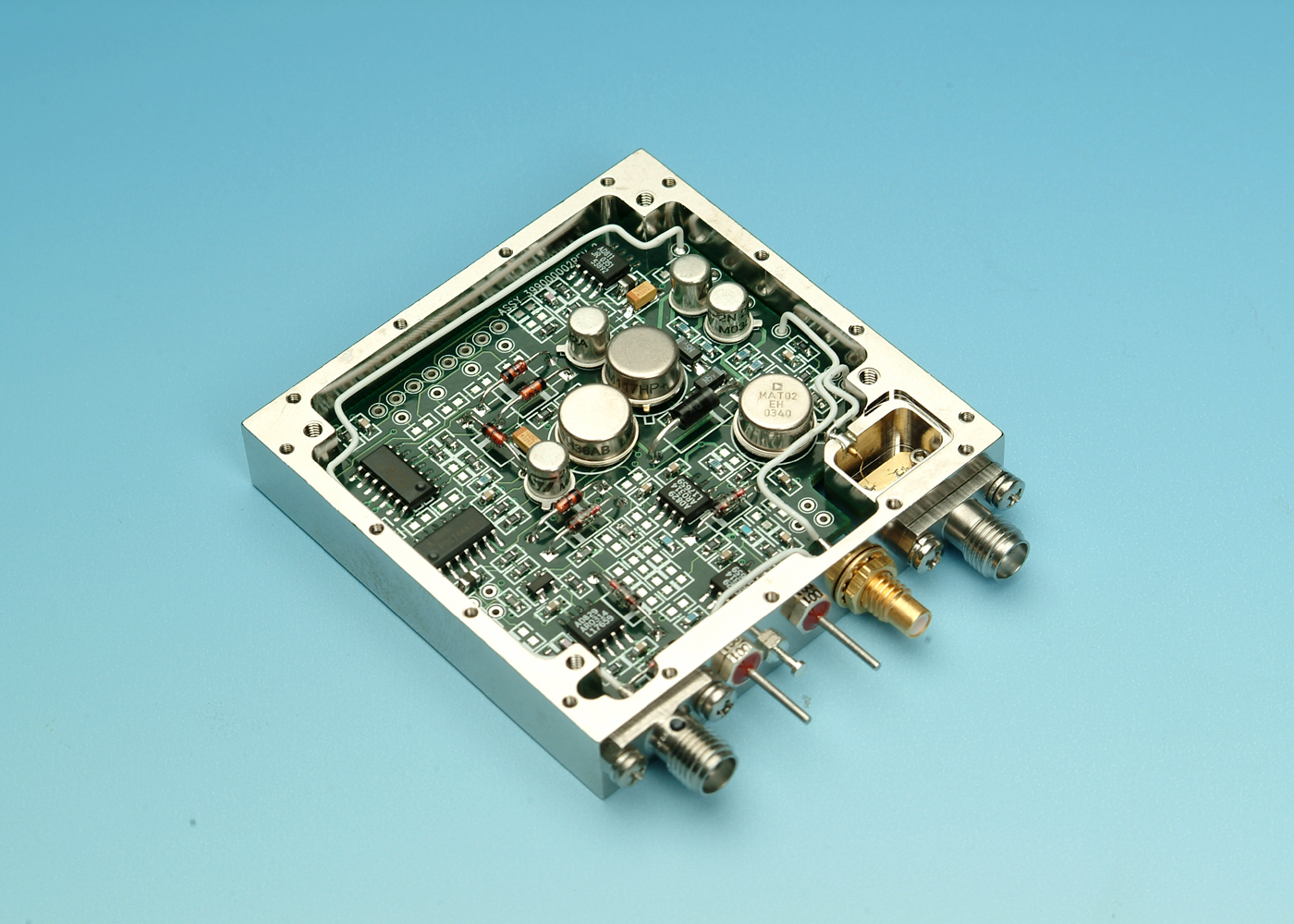

DC Coupled DLVA

FEATURES

  • EXCELLENT LOG LINEARITY
  • WIDE FREQUENCY RANGE
  • FAST PULSE RESPONSE
  • SMALL PACKAGE
  • HYBRID CONSTRUCTION


APPLICATIONS

  • RADAR WARNING RECEIVERS
  • DIRECTION FINDING RECEIVERS
  • IFM RECEIVERS
  • CW OR PULSE MEASUREMENT


SPECIFICATIONS
MODEL GMDA-D0518-40 GMDA-D0520-40 GMDA-D0206-40 GMDA-D0618-40
Frequency Range 0.5 - 18 GHz 0.5 - 2.0 GHz 2.0 - 6.0 GHz 6.0 - 18 GHz
Logging Range
-39 to 0 dBm
-40 to 0 dBm
-40 to 0 dBm
-39 to 0 dBm
Logging Linearity*
+/- 0.5 dB
+/- 0.5 dB
+/- 0.5 dB
+- 0.5 dB
Rise Time
25 ns
25 ns
25 ns
25 ns
Recovery Time
500 ns
500 ns
500 ns
500 ns
Input VSWR
3.5:1
2.0:1
2.0:1
3.0:1
TSS
-40 dBm
-43 dBm
-43 dBm
-40 dBm

*Measured @ band center, referenced to best fit line.
DC Power +/- 60 MA @ +/- 12 to +/- 15 VDC
Dimensions 2.30" x 2.30" x 0.45
